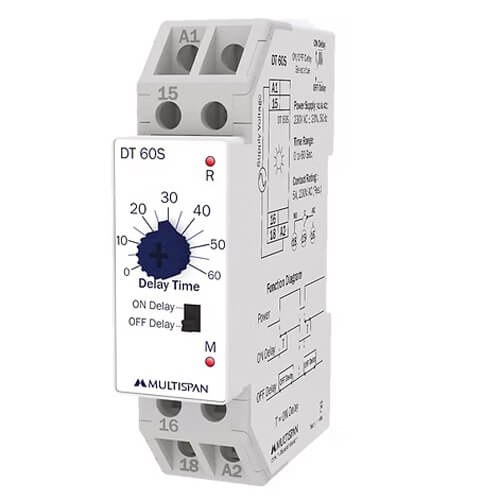

Multispan Analog Timers – 22 Timer Series – DT Series

Brand: Multispan

DESCRIPTION

• Model: DT Series
  – ON-OFF Delay Timer
• Dimension (HxWxD) mm: 90 x 22.5 x 72
• Mounting: Din Rail Mounting
• Input Range:
  – 0 to 10 Sec (For DT-10S)
  – 0 to 30 Sec (For DT-30S)
  – 0 to 60 Sec (For DT-60S)
  – 0 to 15 Min (For DT-15M)
  – 0 to 30 Min (For DT-30M)
• Output: 1 Relay 1C/0, 5A 230V AC (Resistive Load)
• Power Supply: 230V AC ±20%,50Hz / 24V DC /415V AC (Factory Set)
